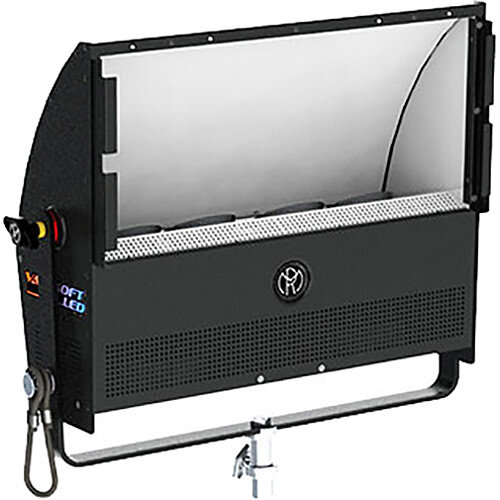

Mole Vari-Soft 400w LED fixture
The Mole-Richardson Vari-Soft LED provides soft, diffused virtually shadowless wrap around light with a smooth field. This fixture can be used for television or motion picture as fill light. Designed so that all the light comes indirect and unobstructed from diffused surfaces through a relatively large aperture. The quality of light is equal to the Type 2591 2000w Softlite it descended from. Color temperature can be adjusted form 2700K to 5600K and any temperature in between.
Included:
1 - 400w Mole Vari-soft LED fixture w/ power cord
Product Highlights
- Four 100W LEDs in unit
- 2000W Tungsten Equivalent
- Variable Color: 2700-5600K
- Beam Angle: 170°
Specifications
| Head(s): | Type 9571 2700K - 5600K, Type 9571-51REV 2700K - 5600K (Pole Operated) |
| Rating: | 90-250 Volts AC, 50-60Hz, 400 Watts, 3 Amps Max. DMX Standby Draw <.1 Amps Max. |
| Light Source: | (4) 100 Watt Mole-Richardson LED 97CRI 2700 - 95CRI 5600k Adjustable Color Temperature |
| Switch: | Thru-cord Toggle in Cable, DMX or Local Toggle in Trough |
| Fuse: | 5 Amp Slow-Blow. Fuseholder in Trough |
| Dimming: | Flicker Free, Direct DC Dimming Local Dimmer 100% - 0% (Minimal Color Shift) DMX Dimmer 100% - 0% (Minimal Color Shift) |
| Control: | 2 Channels - Color Mix (2750-5600K)/Intensity (0-100%) |
| Beam Angle: | 170° (Includes Field) |
| Cooling: | Passive-Forced Air |
| Construction: | Aluminum |
| Yoke: | Aluminum Strap. Accepts 0.625 in (16 mm) dia. mounting hardware |
| Compliance: | RoHS. CE, UL, CSA Pending |
| IP Rating: | 30 |
| Finish: | Textured Black Powder Epoxy Coat. (Other Colors Available) |
| Size: | 9.3 in/237mm(d) x 21.4 in/543mm(w) x 20.3 in/514mm(h) |
| Head Weight: | 18lbs/8.20kg (Head with 25ft/7.6m cable) |
| Aperture: | 8 in x 16 in (203mm x 406mm) |
| Bounce Reflector: | 95% Reflective White Painted Aluminum |
Accessories |
Item Number |
|---|---|
| Egg Crate | 2595 |
| Diffuser Frame (18.25 in x 8.25 in) | 25930 |
| Single Scrim (18.25 in x 8.25 in) | 25979S |
| Double Scrim (18.25 in x 8.25 in) | 25979D |
| Input Power powerCon to House - 25 ft. | 927350 |
| Pass-Thru Cable powerCon to powerCon- 25 ft. | 927352 |
